Steadyrest Bushings
for BTA, Ejector and STS Drills

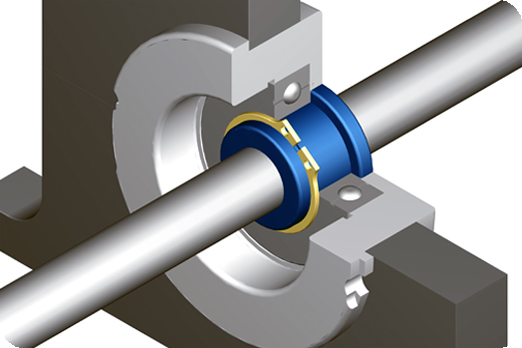

SnapGuide® Steadyrest Bushings
Stop vibration and drill whipping. These flexible plastic bushings support the tube with a slight compression fit and are mounted in a bearing on the steadyrest.
SnapGuide® BTA Bushings
SnapGuide® BTA Bushings

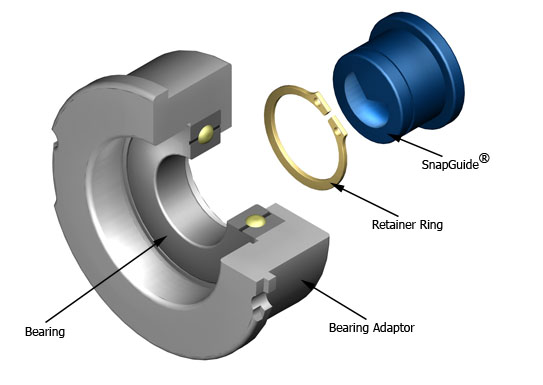

SnapGuide® Exploded View
Each bearing holder has a large drill range capacity-reducing or eliminating holder change-overs on machine.
BTA drill capacity of SnapGuide
30mm .315″ – 1.129″
45mm 1.130″ – 1.692″
75mm 1.693″ – 2.873″
Dimensions
8mm – 28.69mm
28.7mm – 42.99mm
43.0mm – 72.99mm

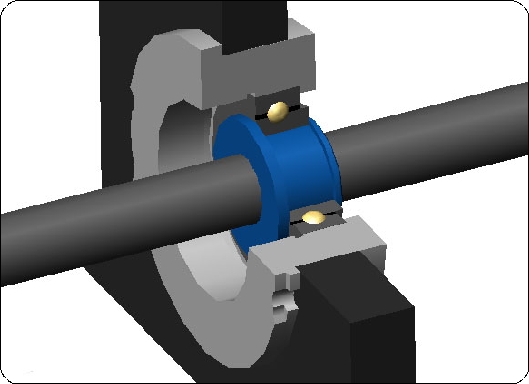

Drill Guide Steadyrest Bushings
Drill Guides serve the same function as SnapGuide®. Use Drill Guides if your machine is already set up for them.
Contact us to discuss the merits of switching your applications from Drill Guides to SnapGuide®.
Drill Guide BTA Bushings
Drill Guide BTA Bushings
*Pricing and specifications subject to change without notice.
